Graph Engineering: The Edge That Carried Nothing

The step that failed before it started

The upload step of a deployment died five milliseconds after it began. There was no timeout, no refused connection, and no rejected credential. The transfer program printed its version banner, then reported that it was not connected. Nothing on a network answers that fast.

That fault was an ordering fault, and it had been in the script since the day it was written. The script listed its commands one under another. The destination it was meant to talk to was named at the end, as a trailing argument. That program reads a script line by line, so it ran the transfer first and opened the connection afterwards, against a session that had already failed. The order was wrong. Nothing in the tooling had any reason to say so.

Everything about the script looked like a dependency. It reads as open the connection, then send the files. A picture in the author's head had an arrow between those two steps. The machine had no such arrow.

That deserves a precise name, since it is the exact mirror of what this piece is about, and the mirror image of a false edge is an edge everybody believes in and nothing ever travels along. An edge is a dependency that carries something real. This one was drawn, believed, and empty. The step downstream of it ran anyway, on the strength of a promise nobody had checked.

Two words cover most of what anyone needs from graph engineering, and the failure above is what happens when the second one gets assumed instead of tested. Every example below comes from one working system: the site this piece is published on, which is built, checked, deployed and corrected by loops that mostly run with nobody watching.

Two words, and one of them does the work

A graph is a plan for work, drawn so the ordering is visible. It answers two questions. Which jobs have to happen, and which job has to wait for which.

A node is one job with one input and one output. That is the whole definition. It might be an agent researching a single competitor, a script rebuilding a single artefact, or a suite reading every page of a site for a pattern the policy refuses to allow anywhere near a published file. Job rather than tool is the unit, so a shell command and a language model both qualify.

An edge is a wait. It counts only when something real travels along it, which in practice means bytes, a record, a verdict, or an exit status. If deleting the first job leaves the second one's output identical, there is no edge there, whatever order the file happens to state.

What makes a node usable inside a graph is a contract rather than a prompt. It needs one bounded job, a defined input, and an output with a fixed shape that gets checked before it moves on to whatever reads it next. A node whose output is a wall of free text can only be read by a person, which puts somebody in the middle of every hand-off. The system is then capped at one reader. With the shape fixed, the next node consumes it without guessing.

NODE CONTRACT
job    one bounded job and nothing else
in     a defined input, passed in and never assumed
out    a defined output shape, checked before it moves
fail   a wrong shape is rejected and retried, never repaired by hand
why    the next node reads this one with nobody in the middle

Contracts are what make coordination cheap. Results pass as data rather than as conversation, and a graph of thirty nodes stops spending thirty context windows explaining itself to itself.

The test that finds the false edges

Take the workflow you run today and walk it one step at a time. At each step, ask one question: does this step read the output of the step before it?

A yes means the edge is real and the order stays. A no means the wait is free money left on the table. Those two jobs can run at once.

Applied honestly the test is uncomfortable, because most of what it finds was put there by you. Check suites are the plainest case here. Each one reads the tree and returns a verdict. None of them reads another's verdict. On the build server they run as two parallel jobs, and the wall clock is the slower of the two. In the gate that runs on a laptop before a push they go one after another, in a line, because the script was written as a list. A list is what a person types.

A more expensive one sits inside the machinery that checks the checkers. Before every sweep, that runner proves the tree is clean by running every suite from a standing start, in order. One sweep pays for that once, which is reasonable. Five small sweeps in an afternoon pay for it five times, and almost all of that time goes on re-proving a result that had not changed. Cleanliness belongs to the tree rather than to the sweep, so a single proof could serve every sweep on it.

Table 1. The test finds three orderings behind this site that carry nothing, and the last row shows an edge worth keeping for a reason that has no data in it.

Most workflows hide two or three of these. Every one of them is latency somebody pays for and nobody chose.

The line you already drew is a graph

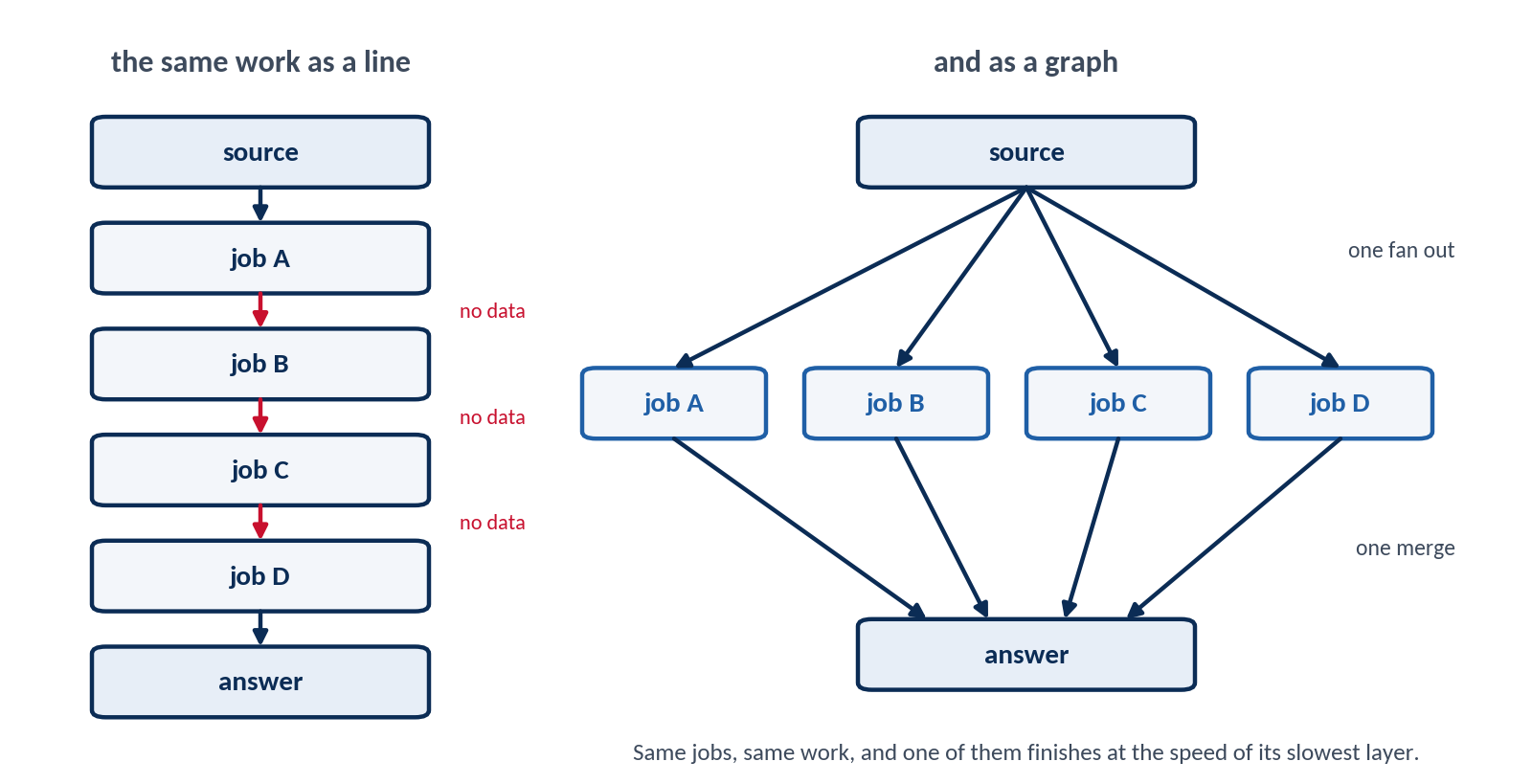

Writing an agent as do A, then B, then C, then D produces a graph. It is the saddest available shape: a single chain where every node has one arrow in and one arrow out. It runs correctly. It also runs slowly and breaks easily, because a chain carries no redundancy. When C stalls, D never happens, and A's work is stranded upstream.

Redrawing that chain is the first real skill here. Walk each arrow, ask whether anything crosses it, and cut the ones that do not. The line collapses into something wider: a handful of independent jobs that run at once, feeding the few that genuinely need them all.

Arithmetic is what makes this worth an evening. A linear workflow of forty steps has forty points of sequential failure, and a latency equal to all forty added together. Drawn as a graph, the same forty jobs carry only the dependencies that actually exist, which is usually three to five of them, and they finish at the speed of the slowest layer rather than at the sum of every step in the list. That is the difference between five minutes and under a minute, on identical work.

This site's builder is a mild version of the same story. It runs as a line of function calls inside one process. Drawn as a graph, it is one source catalogue fanning out into artefacts that never read each other, with four edges between outputs that carry any data at all. Each step costs about a second, so there is nothing to buy yet. That is the honest answer, and it beats pretending an eight-second build needed a fleet.

The diamond, and the narrowing that has to be proven

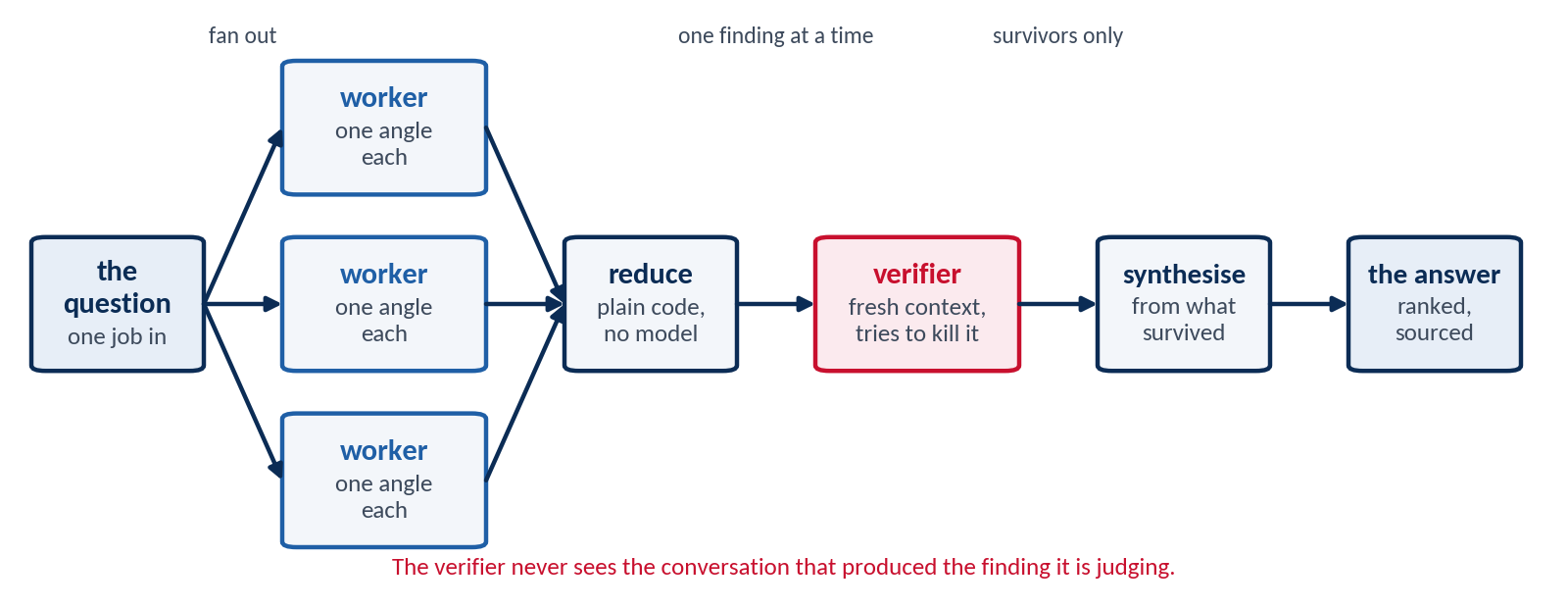

You do not need a catalogue of shapes. Watch any serious system of this kind and the same picture keeps arriving. Work splits, several workers dig side by side, something checks what came back, and everything merges into one answer. That shape is the diamond. Its formal name is worth memorising: fan out, reduce, synthesise.

Fan out for breadth. Reduce in plain code, which costs no tokens and cannot be talked into anything. Synthesise with one agent that writes the answer from whatever survived.

The check run on every push to this site is a diamond with a selector at the top. One job reads which files changed and picks a lane. A documentation-only change takes a narrow lane, an edit to published content takes a wider one, and anything else takes the full set. Whichever lane wins fans out into jobs, and every job's exit status merges into one conclusion.

Now the part that is easy to skip. A narrowing like that is a claim, and an unproven claim inside a checking system is a hole with a green tick over it. So the lanes are proven rather than declared. Every documentation-shaped defect is offered only the documentation lane's suites, and one of them has to catch it. Published content is held to the same standard in its own lane. Widening a lane immediately widens what has to be proven about it, which is the property that earns its keep: it caught a lane that had quietly dropped the one suite reading published pages for inline script.

A red lane is never the last word either. When a narrow lane fails, the full set runs and says so in the log. The cheap path is allowed to be wrong. It is never allowed to be the only thing that looked.

The checker never shares the worker's context

Now the part almost everyone skips, and it is the whole difference between a graph and an expensive toy.

A model reviewing its own work is a poor judge of it. Every serious test of self-review lands in the same place, and it matches what anyone who has reread their own draft already suspects. So the agent that did the work never checks the work. A separate node sits on the edge. Its only job is to try to kill the finding before that finding moves on.

The catch nobody names is the context. Hand that checker the same conversation the worker had and it is not checking anything; it is agreeing with itself in a different font. A graph of agents sharing one context is a single loop in a costume. It fails the same way, later and at greater expense. The bill is the only thing that changes.

So the verifier gets its own context, and it checks a real signal rather than a claim. The question is whether the test passes, rather than whether the agent said it was done.

Turning that idea on the machinery is what produced the checking layer behind this site. Every defect ever found here is registered with a mutation, which is a small edit that puts the original fault back into the tree so that something has to notice it a second time. Each one gets applied, the suites get offered, and one of them has to fail. A defect nobody can reintroduce is a guard nobody will ever re-verify.

Its clean context is a throwaway copy of the repository rather than a fresh conversation, and it matters for the same reason. Two sweeps once ran in one working tree at the same time, and they shared the files, so one of them failed for a reason that had nothing whatever to do with what it was testing. Two nodes looked independent because neither one mentioned the other, and both were writing the same directory. An isolated workspace per sweep fixed it. Every team running agents in parallel learns that one once.

One more property is worth stealing. A detector built only from the defects already in the register can only find shapes the register already knows, so every class of check here also carries a fixture for a form that has never happened. Otherwise the checker graduated from the same school as the thing it grades.

Where graphs actually break

Five failure modes account for most of it, and four have happened in the loops behind this site.

Table 2. Four of these five failures have happened in the loops behind this site, and the fifth is the one they have not yet grown wide enough to reach.

Silent node failure is the one that changes behaviour fastest once you have seen it. In a chain, one failure stops everything, which is annoying and obvious. In a graph, a single node can die quietly, and the merge step will happily write a report on what is left, which is how a run that covered half the ground arrives looking exactly like a run that covered all of it. The guard is arithmetic. Count what came back, compare it against what was sent, and refuse to call a partial set complete. A probe here once ran fewer checks than it should have and turned a deployment red for it, which was exactly the right outcome and looked like the wrong one at the time.

The graph that grades its own homework

There is a deeper trap, and it is the real lesson of this shift.

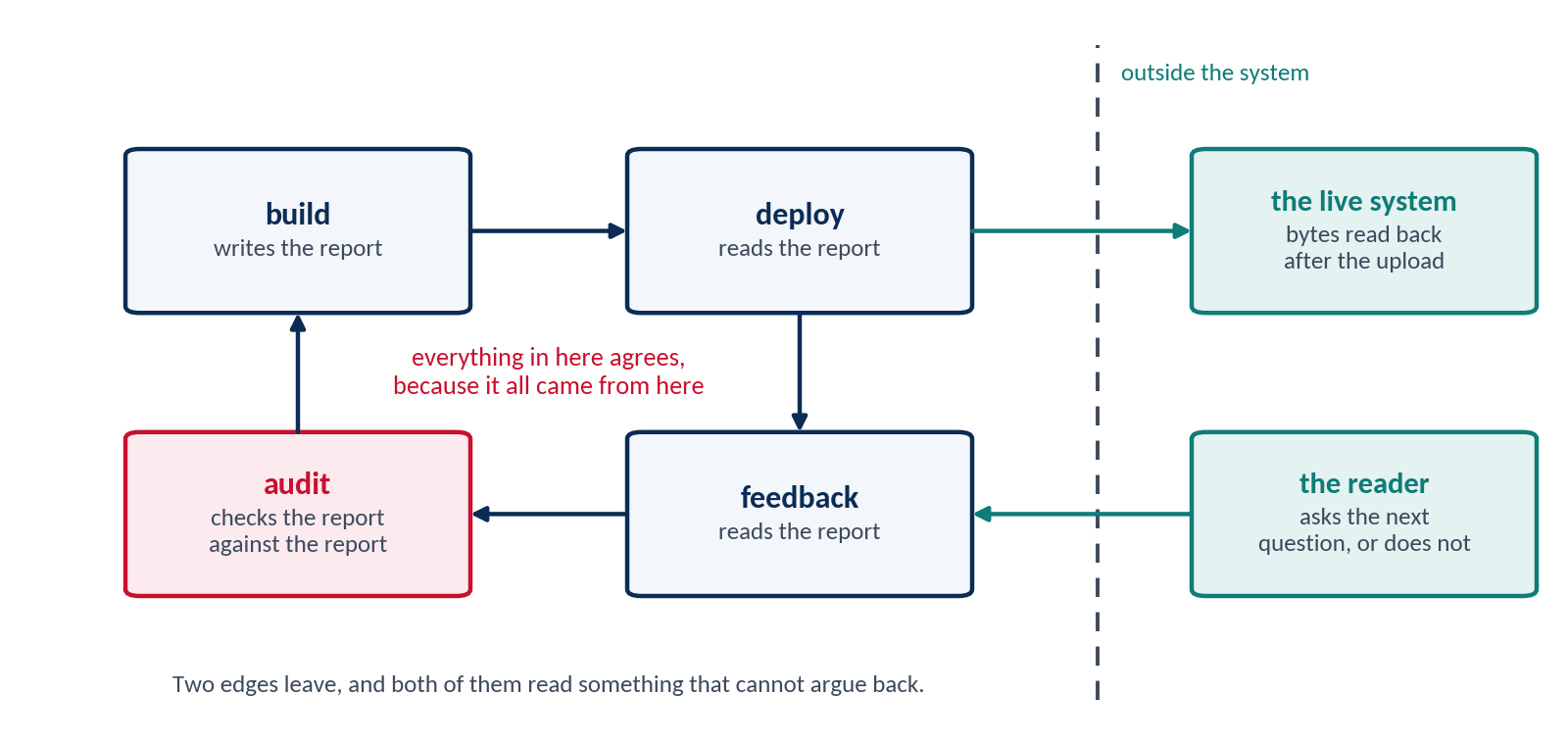

Picture the full build: paired checkers, audit nodes, meta-nodes tuning the other nodes. Every node watches another node, and every one of them reads a report that was written by something else in the same building. The audit checks numbers that came out of the same system in the first place. Everything is consistent. Nothing has been verified. That graph fails exactly the way a single loop failed, only later, more expensively, and with far more green lights on the way down.

Topology does not buy truth. Anchors buy truth, and an anchor is a node that cannot be argued with.

On this site the anchors are specific. A deployment ends by reading the served files back off the live host and comparing them against what the pages promise, so an upload that changed nothing gets caught by the site rather than by the uploader. A reader's next question is the other one, and it is the only judge of whether the answers here got better. Exit status is read directly, never through a text search for the word passing. Mail records count messages that actually left, rather than messages the code believed it sent. When the tool that reads public records is missing, that reads as could not look and never as nothing is there.

Some rules also have to be frozen, and they are precisely the ones an optimiser would bend. No test gets skipped or quarantined to make a run green. A shared core authored elsewhere is never edited here to make a comparison agree. An exit code meaning could not look is never quietly turned into success. Nobody doubts the intent behind any of those. They are written down because they come under pressure on the afternoon everything else is red.

The graph is only as honest as the things inside it that refuse to move.

When the line was fine

A graph buys width. It does not buy judgment, and it never buys truth.

Skip it when the task is small and isolated, because coordination is pure overhead on one bug fix. Skip it when you want to approve every step. Running wide without you is the entire point, and a tight leash works against it. Skip it when the work is exploratory and the target is still unclear, because a fleet locked into a plan is worse than one agent you can steer while you are still finding out what the question actually is. Skip it when the steps genuinely depend on each other.

The tell is the test from earlier. If you cannot find two jobs with no edge between them, there is no graph to build. It is a loop, and a loop is fine.

That applies here as much as anywhere. Adding one article is one job with one input and one output, which is why a narrow lane exists for it rather than a fleet. The graph underneath earns its cost at exactly two widths: the set of check suites, and the set of registered defects the sweep puts back. Everywhere else the line was fine, and calling it a graph would have been decoration.

So draw the thing. Cut the arrows that carry nothing, put a stranger on every edge that matters, and hang the whole structure off something that cannot be talked round. A system that grades its own reports will pass every one of them, and the first person to find out otherwise will be a reader.
